Mark 25 Conductivity Analyzer

Original price $995.00 - Original price $995.00
Original price
$995.00
$995.00 - $995.00
Current price $995.00

Delivery time

In stock and ready to ship

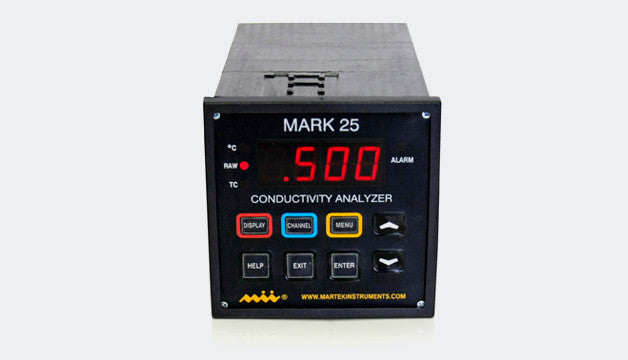

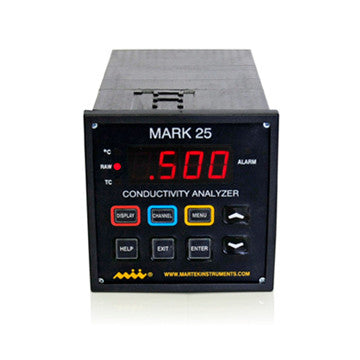

The Martek Mark 25 Ultrapure Water Conductivity Analyzer, also known as the "Martek Miracle Worker", is a highly accurate, simple-to-use monitoring system that provides continuous monitoring of up to four ultrapure water sample points at an affordable price.

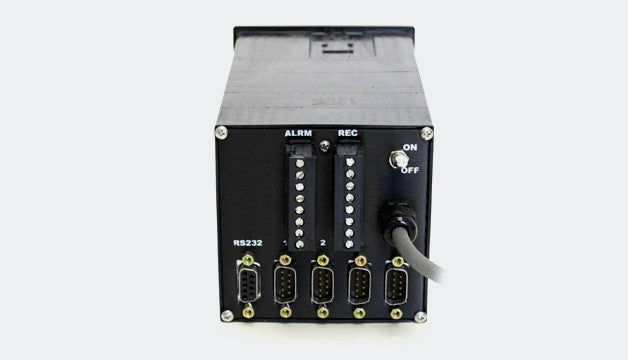

Designed to provide maximum performance and value, the Mark 25’s ability to monitor up to four sample points along with a full complement of output capabilities allows the operator to customize the system to any application. A large, bright 4 digit LED display presents data and setup options quickly while DB-9 connectors and removable terminal strips allow for quick sensor, recorder, and alarm hookups. There’s even an ON/OFF switch located on the rear panel.

Installation and calibration are easy and require a minimum of experience. Housed in a standard ¼ DIN enclosure, the Mark 25 easily replaces inoperative or obsolete equipment without modification to existing sample panels. And, with a five year warranty for the analyzer and a life-time warranty for the conductivity sensor, the Mark 25 is designed for years of worry-free service.

p/n 185-10

SPECIFICATIONS

Parameter

Range

Resolution

Accuracy

Temperature

0 to 100℃

0.01 ℃

±0.1 ℃

Conductivity

0 to 1.000 µS/cm

0 to 10.00 µS/cm

0 to 100.00 µS/cm

0.001 µS/cm

0.01 µS/cm

0.1µS/cm

±0.01 µS/cm

±0.1 µS/cm

±1.0 µS/cm



Power

98-240 VAC, 50 / 60 Hz, Optional 24VDC

Recorder Output

Four isolated, full scale 4-20 mA DC analog outputs and one RS232C digital output

Alarm Output

Four relays, 5 amp, 250V

Dimensions

Analyzer: 3.78 inches (9.6 cm) width x 3.78 inches (9.6 cm) height x 6.51 inches (16.55 cm) depth behind front surface panel

Sensor: 1.10 inches (2.79 cm) width x 2.75 inches (6.99 cm) height x 8.00 inches (20.3 cm) depth

Weight

2 pounds (0.9 kg)

Construction

Analyzer: ABS plastic, NEMA 12 (IP65), Panel mount (mounting hardware included)

Sensor: Type 316 Stainless Steel and Teflon

Warranty

Analyzer: 5 years

Manufactured in

USA


ORDERING INFORMATION

Part Number

Description

185-10

Mark 25 Analyzer

185-21

Flow-thru Conductivity Sensor with 10 ft. (3 meters) cable. Additional cable available up to 150 ft.


NOTE: All prices FOB Factory. Consult the factory for specific warranty information. Warranty subject to certain conditions. Specifications and prices subject to change without prior notice.

BENEFITS

• No-stress service means you won’t have to worry about ordering new sensors; ours are backed by a lifetime guarantee.
• Gets the seal of approval from ASTM, NIST, and USP 23 guidelines

FEATURES

• Large, 4 digit LED displays temperature, raw conductivity, and temperature-corrected conductivity for up to four sample points
• Three manual ranges: 0-1, 0-10, and 0-100 µS/cm and auto-ranging
• Automatic digital calibration for temperature and conductivity
• Four isolated 4-20 mA analog and one RS232 digital output
• Four alarm set points and password protection
• Easy to install, calibrate, and maintain
• 5 year warranty on analyzer and sensor electronics
• Meets ASTM, NIST, and USP 23 Guidelines for ultrapure conductivity measurements

DETAILS

The Martek Mark 25 includes the following items:
• Mark 25 Analyzer
• Flow-thru conductivity sensor

APPLICATIONS

The Mark 25 Ultrapure Water Conductivity Analyzer is ideal for:

• Nuclear and Fossil Fuel Power Generation
• Condensate polishing Systems and Demineralizers
• Semiconductor Fabrication
• Pharmaceutical Manufacturing plants
• Other Industrial applications where ultrapure water monitoring is essential
