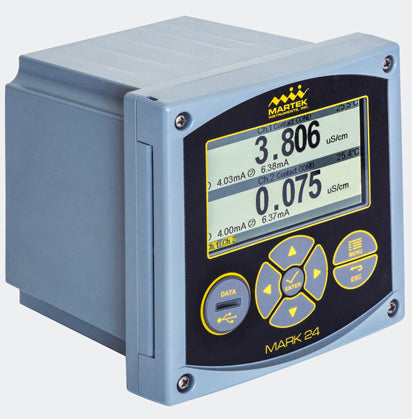

Mark 24 Ultrapure Water Quality Analyzer
Delivery time
In stock and ready to ship
The Martek Mark 24 Ultrapure Water Quality Analyzer provides laboratory accuracy in a multi-channel, multi-parameter on-line instrument for continuous monitoring of high purity water quality. Designed for maximum flexibility and value, the Mark 24 provides real-time measurement of up to four separate parameter inputs to permit custom configurations for a variety of process applications.
Data is displayed in direct engineering units via a large color display in user-selectable languages that include English, Spanish, French, German, Italian, Portuguese and Chinese.
Installation and calibration are easy and require a minimum of experience. Housed in a standard ½ DIN enclosure, the Mark 24 easily replaces inoperative or obsolete equipment without modification to existing sample panels. Analog and digital protocols provide maximum flexible communications and field-configurable upgrades are easily accomplished via the USB data port.
p/n 184-10
SPECIFICATIONS
|
Parameter |
Range |
Resolution |
Accuracy |
|
Temperature |
0 to 100℃ |
0.01 ℃ |
0.1 ℃ |
|
Conductivity |
0 to 1.000 µS/cm 0 to 10.00 µS/cm 0 to 100.00 µS/cm |
0.001 µS/cm 0.01 µS/cm 0.1µS/cm |
±0.01 µS/cm ±0.1 µS/cm ±1 µS/cm |
|
pH |
0 to 14 pH units |
0.01 pH units |
±0.1 pH units |
|
ORP |
-2000 to +2000 mV |
1 mV |
±0.1 mV |
|
Power |
120-240 volts VAC, 50 / 60 Hz, 0.4A Max @ 25℃. Optional 24VDC |
|
Recorder Output |
Two isolated, assignable, current loops per sensor (standard). Full featured PID control for conductivity or pH. |
|
Digital Protocol |
MODBUS RTU, DeviceNet, Profibus DP/V1, Ethernet/IP |
|
Alarm Output |
Three Form C Relays (standard): 5A, 250 V. Additional three Form C Relays options |
|
Environmental |
Ambient operating temperature range: -20℃ to 60℃ |
|
Dimensions |
9.70 inches (24.6 cm) width x 4.90 inches (12.5 cm) height x 13.0 inches (33.0 cm) depth behind front surface panel |
|
Weight |
2 pounds (0.9 kg) including sensor with 10 ft (3 meters) cable |
|
Approvals |
CE: EN6100 -4-2, -4-3, -4-4, -4-5, -4-6, -4-11 |
|
Warranty |
Two years |
|
Manufactured in |
USA |
ORDERING INFORMATION
|
Part Number |
Description |
|
184-10 |
Mark 24 Analyzer |
|
180-21 |
Flow-thru Conductivity Sensor with 10 ft. (3 meters) cable. Additional cable available up to 150 ft. |
|
184-24 |
pH Sensor |
|
180-51 |
SS Flow Chamber for pH |
|
180-51A |
SS Adapter Plug with temperature element for pH |
NOTE: All prices FOB Factory. Consult the factory for specific warranty information. Warranty subject to certain conditions. Specifications and prices subject to change without prior notice.
