Mark 22 Portable Water Quality Analyzer

Original price $3,750.00 - Original price $3,750.00
Original price
$3,750.00
$3,750.00 - $3,750.00
Current price $3,750.00

Delivery time

In stock and ready to ship

The Mark 22 is the easiest way to measure conductivity and pH for ultrapure water processes in one portable package.

Also known as the Mark 22 Calibrator, it is a completely portable analyzer capable of verifying the performance of on-line conductivity and pH monitors. Designed to eliminate grab sample analysis and the inherent errors due to carbon dioxide contamination, the Mark 22 can be calibrated in the laboratory to traceable NIST and ASTM standards, then carried to the sample panel for direct measurement of the sample stream. This light weight analyzer contains its own rechargeable battery power supply, internal clock, memory, and both analog and digital communications port. The Mark 22's large back-lit display provides both raw and temperature-compensated data in direct engineering units while its menu-driven software makes calibration and data logging easy and straightforward.

While Martek Instruments offers its own certified, unbreakable conductivity reference cells and pH sensor, the Mark 22 can also be used with any conductivity reference cell or pH electrode regardless of manufacturer.

All Mark 22 accessories are sold separately. To purchase a bundle and save, view the Mark 22 Starter Kit here

p/n 182-10

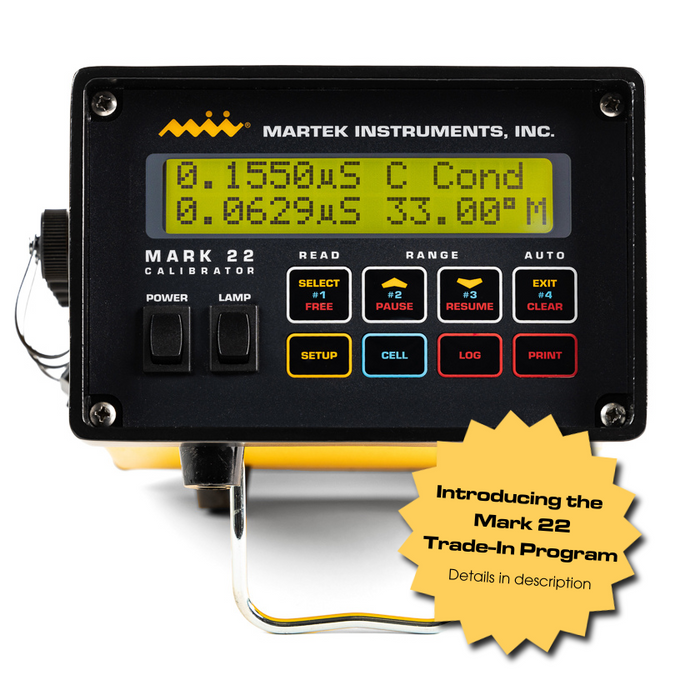

NEW:  Introducing the Mark 22 Calibrator Trade-in Program

We are now offering a trade-in program to help our customers turn in their old, tired Mark 22s for new ones.

Based on the age and condition of your Mark 22, you can receive credit towards the purchase of a new one. Below is the schedule:

                                    0-5 years old receive a $750-$1,000 credit

                                    6-10 years old receive a $500 credit

                                    >10 years old receive a $250 credit

Simply return your Mark 22 to Martek with a note requesting a credit. We will evaluate each one to determine its age and condition and then inform you of your credit. It’s that simple.

SPECIFICATIONS

Parameter

Range

Resolution

Accuracy

Sensor Type

Temperature

0 to 100℃

0.01 ℃

±0.1 ℃

Thermolinear array

Conductivity*

0 to 1.0000 µS/cm

0 to 10.000 µS/cm

0 to 100.00 µS/cm

0 to 1000.0 µS/cm

0.0001 µS/cm

0.001 µS/cm

0.01 µS/cm

0.1µS/cm

±0.001 µS/cm

±0.01 µS/cm

±0.1 µS/cm

±1.0 µS/cm

2-element cell

Type 316 SS

pH

0 to 14 pH units

0.01 pH units

±0.1 pH units

Combination glass electrode with double junction reference

*NOTE: The accuracy of conductivity measurements is dependent on appropriate cell constant in the scale of measurement and on the quality of the electrode.

Power

6 volt internal rechargeable battery pack. 120 or 240 volts AC, 50/60 Hz Battery Charger

Printer Output

Serial ASCII RS232C digital output. 0-1 volt DC analog output

Case Dimensions

6.80 inches (17.27 cm) width x 4.42 inches (11.23 cm) height x 8.60 inches (21.84 cm) depth

Case Weight

8.0 pounds (3.64 kg)

Construction

NEMA 12 extruded aluminum enclosure coated to MIL SPECS

Manufactured in

USA


ORDERING INFORMATION

Part Number

Description

182-10

Mark 22

221042

6V Charger

400550

Calibration Plugs (0 uS/cm)

400549

Calibration Plugs (1 uS/cm)

603051

Calibration Cable

182-21

Conductivity Reference Cell (0-50µS/cm)

182-22

Conductivity Reference Cell (0-1000µS/cm)

182-24S

pH Sensor

180-51

Type 316 Stainless Steel Flow Chamber for pH Sensor

180-51A

pH Adapter Plug for Flow Chamber

182-25

Carrying Case


NOTE: All prices FOB Factory and include the following warranties against defects in materials or workmanship: Analyzer- 1 year, Conductivity Sensors- Lifetime. Consult factory for specific warranty information. Specifications and prices subject to change without prior notice.

BENEFITS

- Provides instant validation of on-line measurements that lead to effective decision-making
- Calibrates on-line equipment with ease, saving lots of time
- Transforms anyone into an “expert” in water quality analysis

FEATURES

- Autoranging conductivity measurements
- User-selectable temperature compensation formulas for conductivity
- Solution-Compensation measurements for both conductivity and pH
- Automatic electronic temperature calibration
- Up to four pre-set cell constants
- Certified Calibration Plugs for electronic calibration of conductivity
- Data storage in non-volatile RAM with RS232 digital output at user-selectable printing intervals
- 0-1 volt analog recorder output
- Removable carrying strap and built-in stand

DETAILS

Purchasing the Mark 22 “a la carte” requires the following additional purchases for optimal usage:
- Mark 22 Calibrator
- Battery Charger
- Calibration Cable
- Set of Calibration Plugs (0 & 1 uS/cm)

You can bundle your purchases and save with the Martek "Starter Kit" to purchase every accessory needed for in situ calibration.

APPLICATIONS

The ability to provide traceable calibration and verification data make the Mark 22 ideal for a variety of applications related to ultrapure water analysis:

- Nuclear and Fossil Fuel Power Generation
- Condensate Polishing Systems and Demineralizers
- Semiconductor Fabrication
- Pharmaceutical Manufacturing plants
- Metrology Labs
- Other Industrial applications where ultrapure water monitoring is essential
