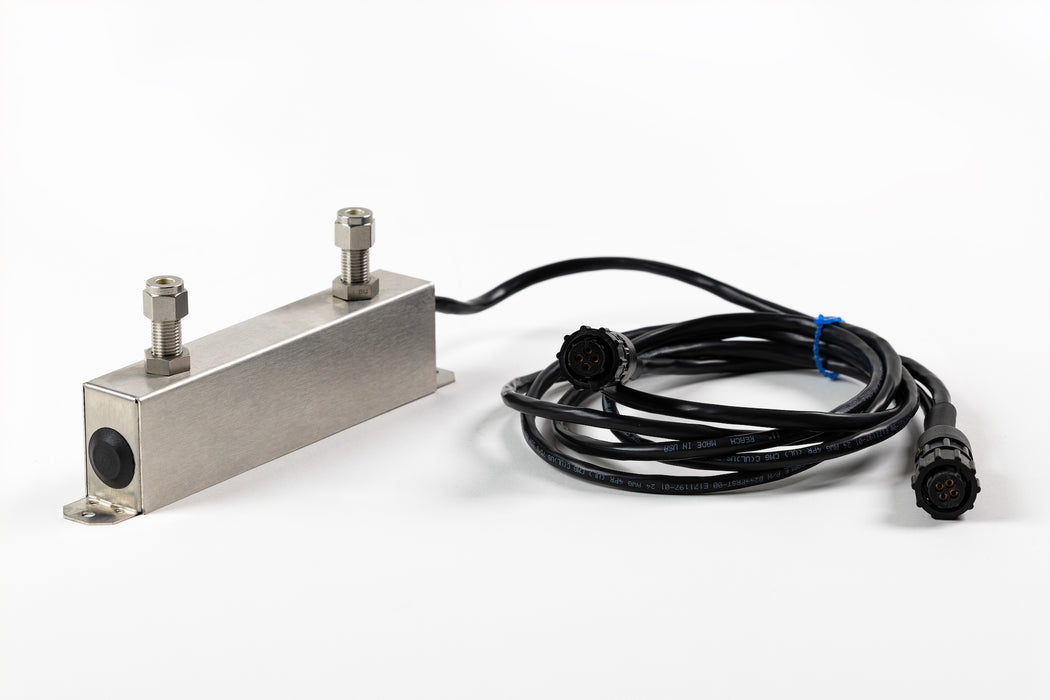

Conductivity Reference Cell for Mark 22

Original price $600.00 - Original price $675.00
Original price
$600.00
$600.00 - $675.00
Current price $600.00

Delivery time

In stock and ready to ship

Martek sensors are built to the most exacting standards. Each sensor comes complete with its own electronic circuitry secured in a separate NEMA 4X enclosure. This signal conditioning module or preamp permits transmission of interference-free signals over long distances (up to 2,000 feet) and provides electronic calibration for each specific sensor.

All conductivity sensors feature Type 316 Stainless Steel and Teflon materials and require minimum sample volumes eliminating the need for bulky flow chambers.

For use with the Mark 22 Portable Analyzer.

Please choose measurement range by selecting from the drop down list above.

p/n: 182-21:    0-100 µS/cm

p/n: 182-22:    0-1000 µS/cm

Stainless Steel Housing:

p/n: 182-21SS:     0-100 µS/cm, Stainless Steel Housing

p/n: 182-22SS:    0-1000 µS/cm, Stainless Steel Housing

SPECIFICATIONS

Operating Temperature

2.0 to 100.0℃ @ 20 psi

Maximum Pressure

150 psi @ 50.0℃

Flow Requirement

50.0 to 450.0 ml/min

Electrode Type

Type 316 Stainless Steel

Two-element cell


Dimensions

8.0” x 1.25” x 3.0” LWD

Weight

2.0 lbs

Construction

316 Stainless Steel and Teflon

Warranty

Lifetime

Manufactured in

USA


ORDERING INFORMATION

Part Number

Description

182-21SS

Conductivity Flow-thru Sensor, Stainless Steel housing, 0-50 uS/cm

182-21

Conductivity Flow-thru Sensor, 0-50 uS/cm

180-22

Conductivity Flow-thru Sensor, 0-1,000 uS/cm



NOTE: All prices FOB Factory. Consult the factory for specific warranty information. Warranty subject to certain conditions. Specifications and prices subject to change without prior notice.

APPLICATIONS

The conductivity sensor is meant to be used with the Mark 22 Portable Water Quality Analyzer which is ideal for the following applications:

- Nuclear and Fossil Fuel Power Generation
- Condensate polishing Systems and Demineralizers
- Semiconductor Fabrication
- Pharmaceutical Manufacturing plants
- Other Industrial applications where ultrapure water monitoring is essential
